zte c320 detailed introduction

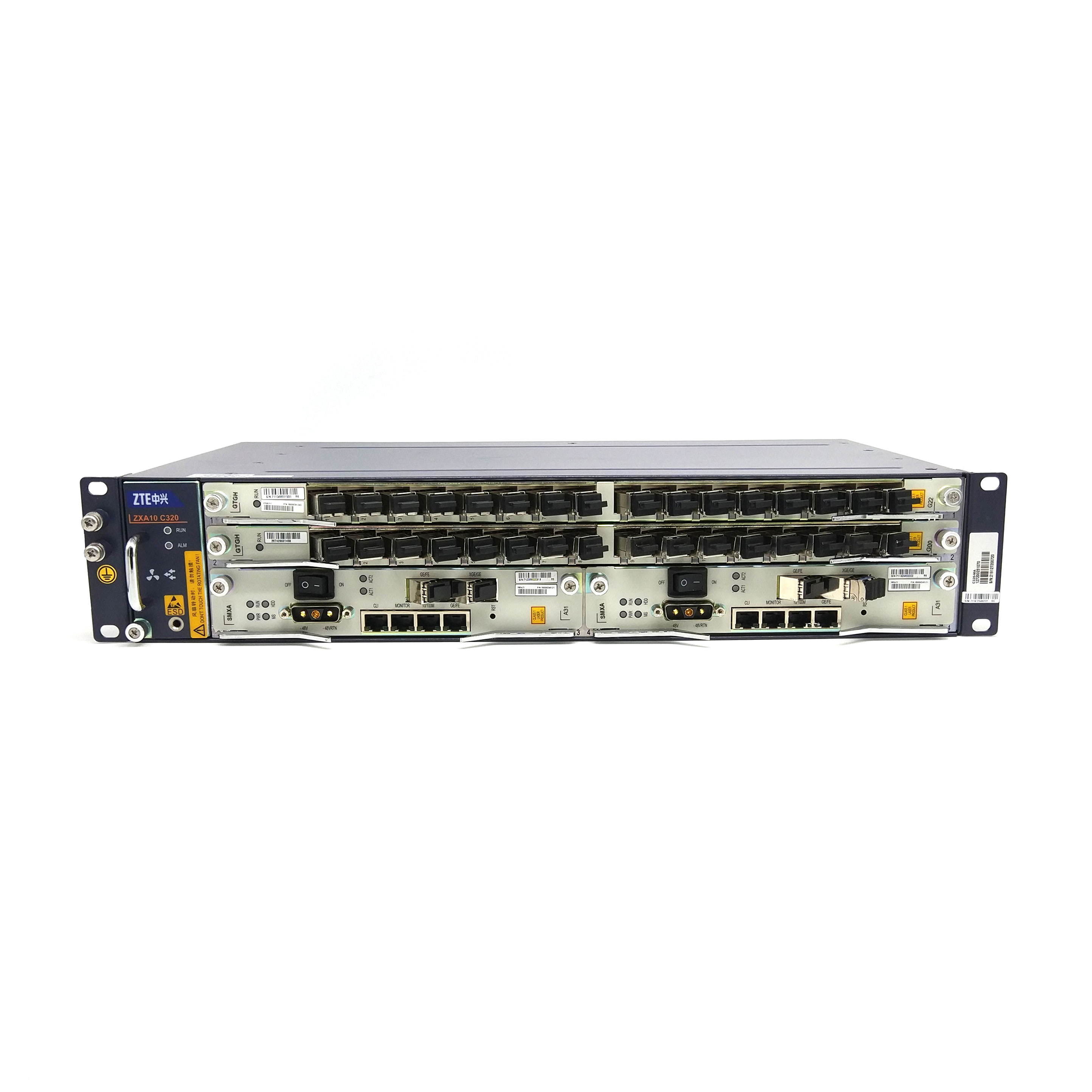

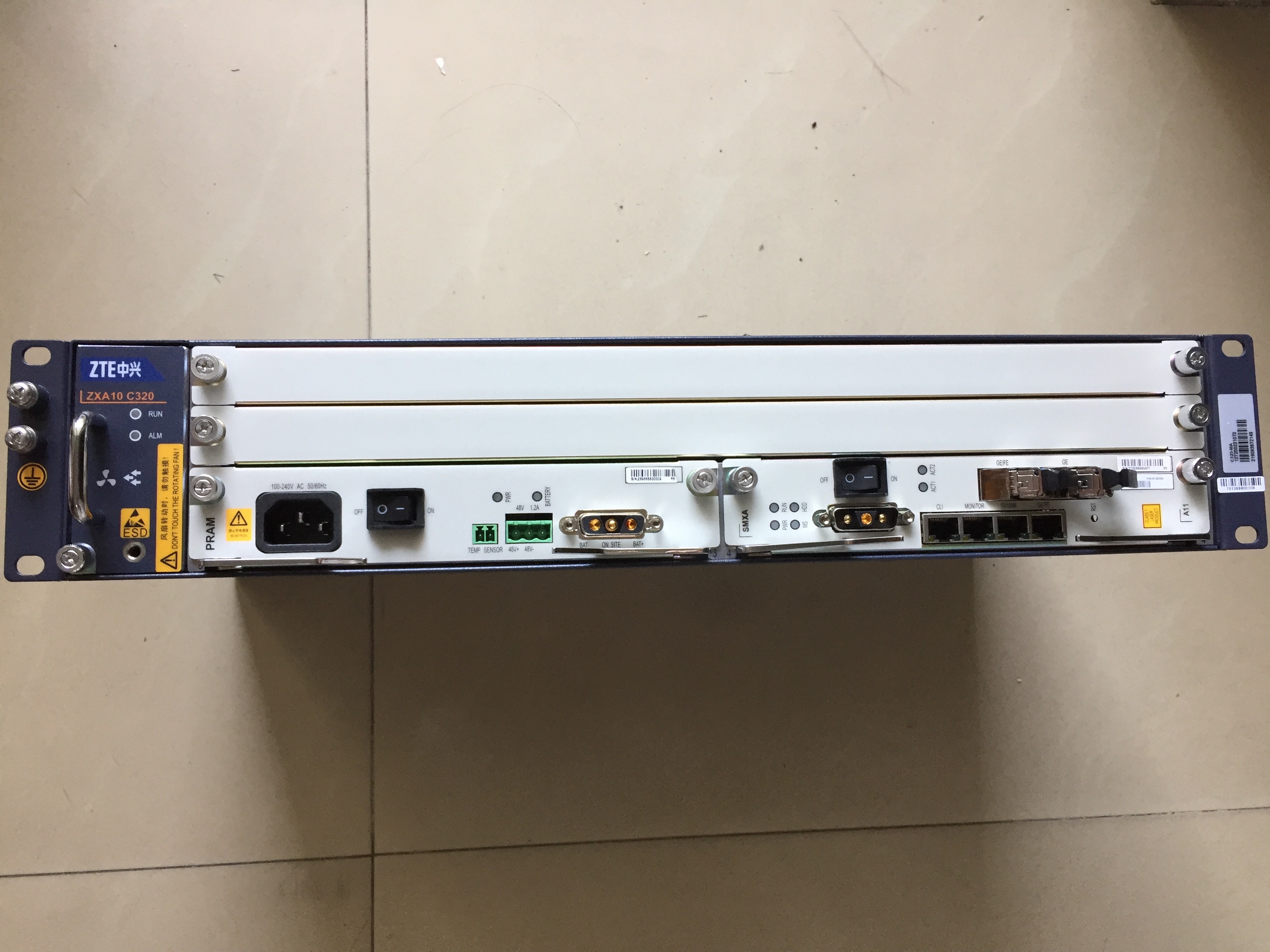

ZXA10 C320 new generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capabilities, a single chassis can provide 32-channel G/EPON ports and 96-channel P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 same platform access, and will also support TWDM-PON technology in the future; it uniformly carries voice, high-speed Internet, IPTV, traditional TDM and mobile backhaul services to achieve comprehensive Access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, and is compatible with ZXA10 C300 service board, saving board costs;

Flexible networking to adapt to various deployment scenarios

Long-distance and wide coverage: Supports non-dense access scenarios such as OLT sinking, co-site installation, long-distance extension, mobile bearer, and outdoor integration, and is suitable for optical access for user groups such as parks, communities, enterprises, towns, and villages;

Multiple networking methods: Flexible support for various networking needs such as P2P, hand-in-hand, cascade and ring network, to achieve rapid deployment of networks and services;

Powerful performance enables refined operations

The multicast function is complete and reliable: ZTE C320 provides SCB and secondary multicast replication mechanisms, and a complete, refined and reliable user multicast control mechanism;

Complete H-QoS control: ZTE C320 supports three-level hierarchical H-QoS control based on service providers, users and services, and meets the requirements of Open Access networks;

High-precision clock/time synchronization: ZTE C320 provides high-precision time and clock synchronization methods such as IEEE 1588V2 and synchronous Ethernet;

Strong reliability, providing carrier-grade system and business security

Board protection: ZXA10 C320 main control switching, power supply and management all work in active/standby or redundant mode;

Link protection: fiber line PON protection and uplink LACP, load sharing, dual-homing, STP and ring network protection;

Strong environmental adaptability: ZXA10 C320 matches different models of outdoor cabinets such as OUT50ET and EC90EB to meet the installation needs of various outdoor environments;

AC and DC input backup power: ZXA10 C320 provides AC input or DC input and battery backup power;

Energy conservation and environmental protection, creating a new era of green communications

Energy-saving and low-power design: Using a new generation of chips, intelligent low-power design, supporting single-board electromechanical management, system power consumption monitoring, optical port ALS function, etc., the energy consumption under the same port configuration is at least 35% lower than that of a large OLT;
