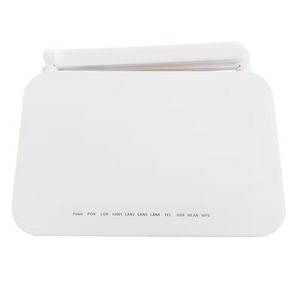

huawei optixstar eg8145x6
HUAWEI
Huawei EG8145X6 ONT is a dual band WIFI 6 terminal, 5G and 2.4G band, in 5G band it has IEEE 802.11 WIFI / n / ac / AX, and in 2.4G band it has IEEE 802.11 b / g / AX. It has 2 external antennas and is MIMO 2 * 2 in both bands.
EchoLife EG series optical network terminals (ONTs) are utility devices in Huawei's FTTH (fiber to housing) solutions; they provide ultra-wideband access for home users or small businesses (SOHOs) that use GPON technology.
Specifications
Parameters | Huawei OptiXstar EG8145X6-10 |
Dimensions (H x W x D)(without external antenna and pads) | 35 mm x 195 mm x 125 mm |
Operating temperature | 0°C to 40°C |
Operating humidity | 5% RH to 95% RH (non-condensing) |
Power adapter input | 100–240 V AC, 50/60 Hz |
System power supply | 11–14 V DC, 1.5 A |
Static power consumption | 6 W |
Maximum power consumption | 18 W |
Memory | 128 M Flash, 256 M RAM |
NNI | GPON |
UNI | 4 x GE+1 x POTS+2.4G/5G Wi-Fi 6+1 x USB |
Indicators | Power/PON/LOS/LAN/TEL/USB/WLAN/WPS |
Weight | About 372 g |
