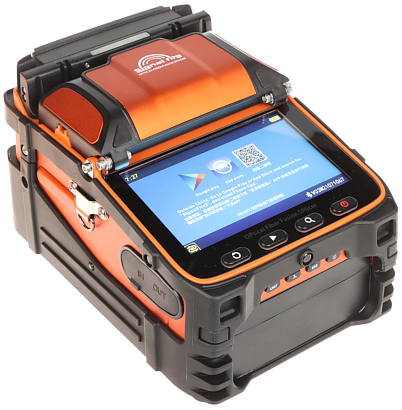

Signal fire New Model AI-9 Fusion Splicing Six Motor Core Alignment Fiber Fusion Splicer Automatic FTTH Fiber Optical Welding Splicing 5S Heating 15S

AI-9 is the latest model from the line of optical fiber splicers, which have been successfully used in fiber optic installations of various categories for several years. Thanks to the fine-tuning of the software and an even better optimization of the splicing process, the entire process has been shortened to just 5 seconds. However, the most important feature of the new model is built in optical power meter module and visual fault locator . This allows for quick diagnostics of the optical path immediately after making a splice.

Availability:

Quantity:



Inquire Add to Basket

Model:
AI-9
Brand:
Signal Fire

Product Description

SIGNAL FIRE FUSION SPLICER AI-9

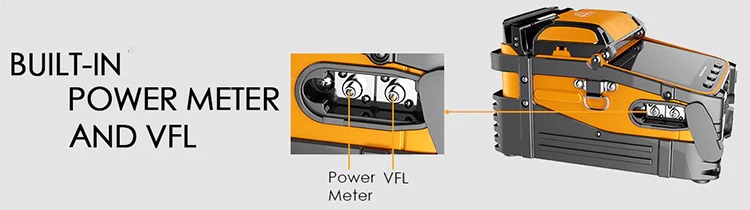

1、Built-In Power Meter & VFL;

2、New Generation Fusion Splicer: Six Motors Core Aignment Technology, Auto Focus;

3、All Range Of Projects: 100KM Trunk Construction, FTTH, Security Monitory...

4、Fast Response: Industrial Quad-Core CPU;

5、User-Friendly: 5-Inch 800x480 Hight Resolution Screen, 300 Times Magnifications, Simple Operation but Intuitive;

6、High Efficiency: 5Secs Splicing, 15Secs Heating.

Specifications

AI9-DES-2

Applicable Fibers	SM(G.652&G.657), MM(G.651), DS(G.657), NZDS(G.655)
Splice Loss	0.025dB(SM), 0.01dB(MM), 0.04dB(DS/NZDS）
Focus mode	Auto focus
Magnification	300 for X or Y view, 150 for X or Y view

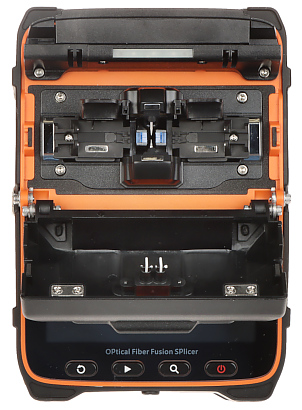

Fiber alignment	Core alignment Manual alignment
Typical splicing time	5S
Typical heating time	15S
Visual Fault Locator	Power: 15mw, 2hzflashing And Constantly Bright Mode
Operating Conditions	Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation),Working altitude: 0 ～ 5000m. Resist max. wind speed: ≤ 15m / s
Power supply	Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power

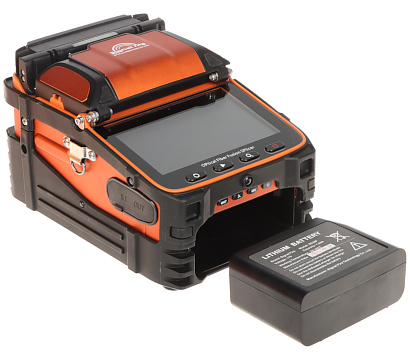

Built-in battery	7800 mA high-capacity lithium battery, charging time ≥ 3.5 hours, continuous splicing and heating about 240 times
Splicing record storage	Synchronize to the phone, the server to cloud storage unlimited
