ma5800 x7
huawei

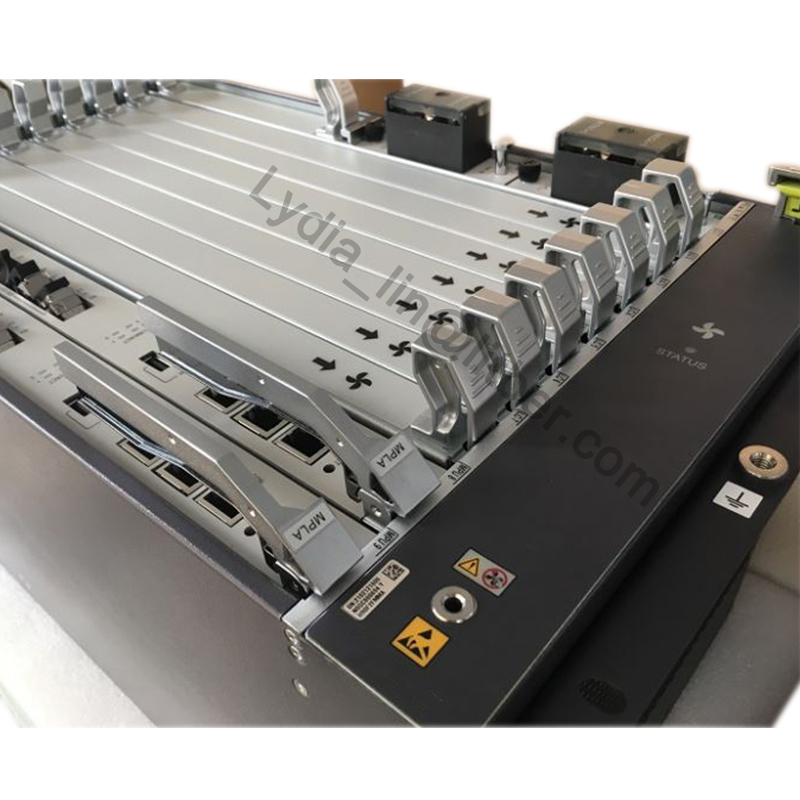

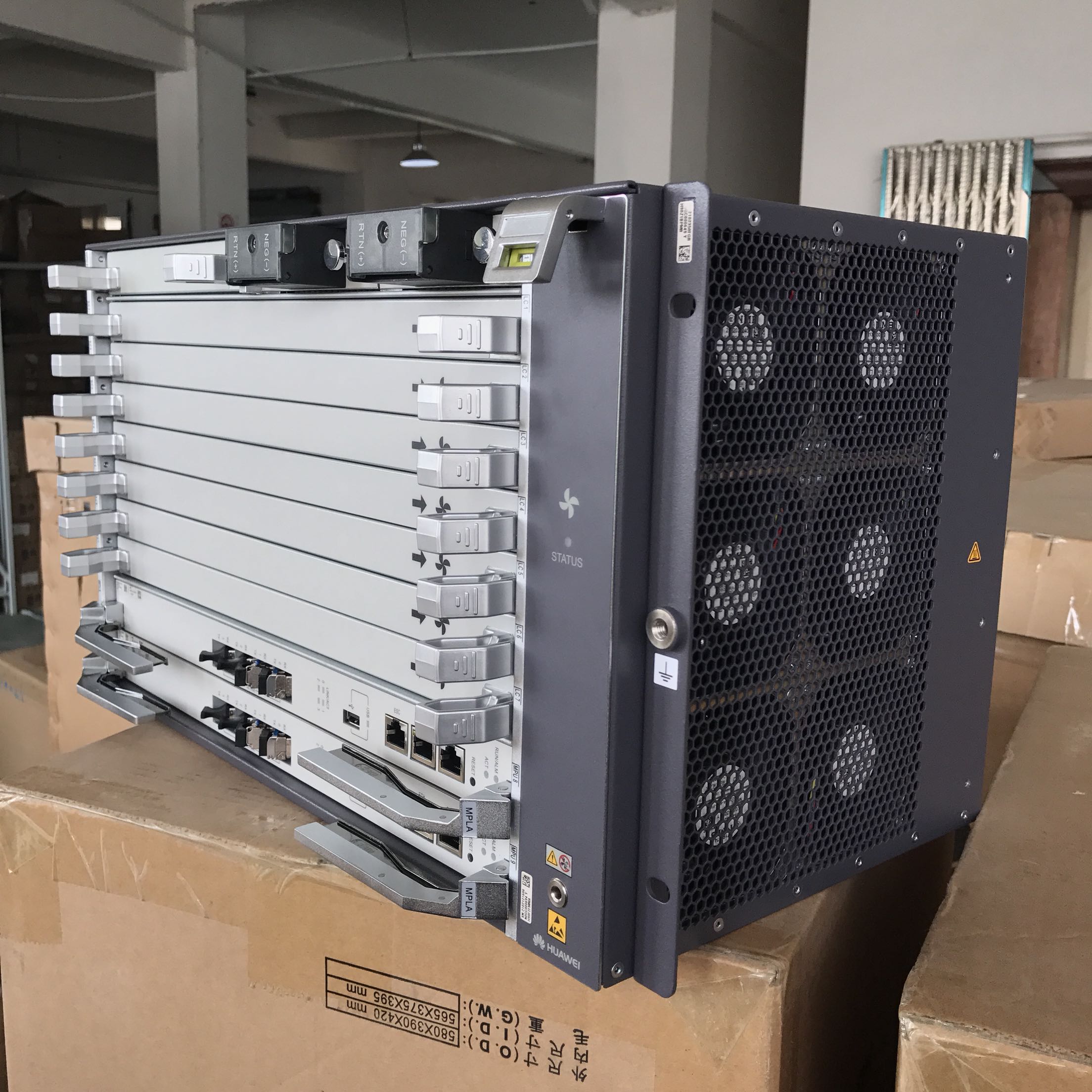

Huawei MA5800 X7 is a high-performance optical line terminal (OLT) device. The following is a detailed introduction:
Hardware Specifications
Appearance size: 442.0mm×268.7mm×263.9mm without mounting ears, 482.6mm×268.7mm×263.9mm with IEC mounting ears, and 535.0mm×268.7mm×263.9mm with ETSI mounting ears.
Weight: Full weight (with mounting ears) 26kg.
Power supply: DC dual-channel power supply backup, rated voltage - 48V/-60V, operating voltage range - 38.4V～-72V, input current 40A per channel.
Performance parameters
Backplane bus switching capacity: 4.68 Tbit/s.
Main control board switching capacity: H901MPLA/H901MPLC: 7 Tbit/s; H901MPLB: 200 Gbit/s.
Bandwidth per slot of service board: H901MPLA/H901MPLC: 100 Gbit/s; H901MPLB: 200 Gbit/s.
Number of GPON ports: 112.
Number of 10G GPON ports: 56.
Number of EPON ports: 112.
Number of 10G EPON ports: 56.
Number of GE/FE ports: 336.
Number of 10GE ports: 56.
Number of E1 ports: 224.
Features
Support for multiple access technologies: Supports GPON, 10G GPON (XG-PON and XGS-PON), EPON, 10G EPON, P2P GE and 10GE access, which can meet the needs of various business scenarios such as home access, enterprise access, mobile bearer and Wi-Fi hotspot backhaul, and realize full service on a fiber network.
Large-capacity business bearer: Equipped with 7 business slots, each with 200G The throughput can support the access of a large number of users and the simultaneous operation of multiple services to meet the growing network bandwidth requirements.
High MAC address and ARP table support: Supports 262,143 MAC addresses and 65,536 ARP table entries, which is a significant improvement compared to the previous generation of products, and can better adapt to large-scale network deployment and complex business environments.
Smooth evolution capability: It can smoothly evolve to 40G/100G PON, protect customer investment, and adapt to the long-term development of future networks.
High integration: It integrates the functions of OLT and aggregation switch, and supports unified aggregation of ONT, MDU and campus switches as a large-capacity aggregation device, helping to simplify network architecture and reduce operating costs.
Reliability design: It has redundant designs such as dual master control and dual power supply to improve the reliability and stability of the equipment and ensure the continuous operation of the network.
