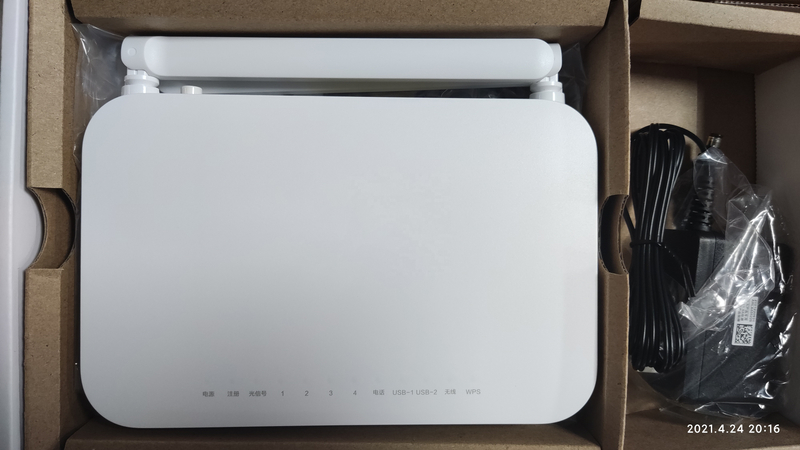

EG8145X6
HUAWEI
Technical parameters of Huawei OptiXstar EG8145X6-10:
Network access and transmission
GPON technology: Using Gigabit passive optical network technology, ultra-broadband access can be achieved. In theory, it can meet the bandwidth requirements of 2.5Gbps upstream and 10Gbps downstream, providing users with high-speed and stable network connection.
Wi-Fi 6 technology: Supports the new generation of Wi-Fi 6 technology, including IEEE 802.11 b/g/n/ax (2.4G) and IEEE 802.11 a/n/ac/ax (5G), with 2×2 MIMO (2.4G) and 2×2 MIMO (5G), and the air interface rate can reach 574 Mbit/s (2.4G) and 2402 Mbit/s (5G), respectively, and supports 1024QAM and 160 MHz Frequency bandwidth, can provide faster and more stable wireless signals, meet the needs of multiple devices connecting at the same time, and reduce network congestion.
Port configuration
Ethernet port: equipped with 4 Gigabit Ethernet ports, can connect multiple wired devices at the same time, such as computers, smart TVs, game consoles, etc., to meet the network connection needs of multiple devices in the home or office.
POTS port: A POTS port is used to connect a traditional landline phone to realize voice call function.
USB port: A USB port can be used to connect an external storage device, such as a USB flash drive or a mobile hard drive, so that users can share files between devices in the network.
Physical specifications
Dimensions: Height × Width × Depth is 35 mm × 195 mm × 125 mm.
Weight: About 372g.
Power parameters
Input: 100-240V AC, 50/60Hz.
System power supply: 11-14V DC, 1.5A.
Static power consumption: 6W.
Maximum power consumption: 18W.
Working environment
Temperature: 0℃-40℃.
Humidity: 5% RH-95% RH (non-condensing).
Device performance
Memory: 128M Flash, 256M RAM.
Functional features
Intelligent services: with scheduled Wi-Fi shutdown, intelligent Wi-Fi sharing (support portal/802.1x authentication and SoftGRE-based sharing) and other functions.
Intelligent interconnection: supports intelligent Wi-Fi coverage, SIP/H.248 auto-negotiation, any port any service and parental control, etc., which facilitates users to safely share Wi-Fi networks with guests or other devices in home or office environments, and control devices connected to the network and reasonably manage Internet access behavior.
Intelligent operation and maintenance: with IPTV video quality diagnosis, eMDI, rogue ONT detection and isolation from OLT, call simulation, circuit test and loop line test, PPPoE/DHCP simulation test, WLAN Simulation and other functions can automatically detect whether there are unauthorized illegal optical network terminals in the network, and isolate them from optical line terminals to prevent them from affecting network security and normal operation, while ensuring stable network operation and timely discovering and solving possible problems.
