MA5800 X2
huawei

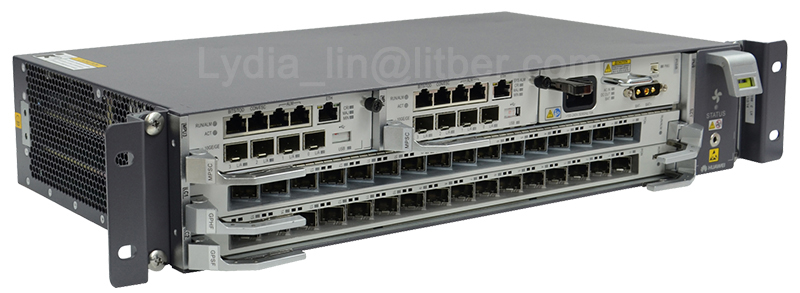

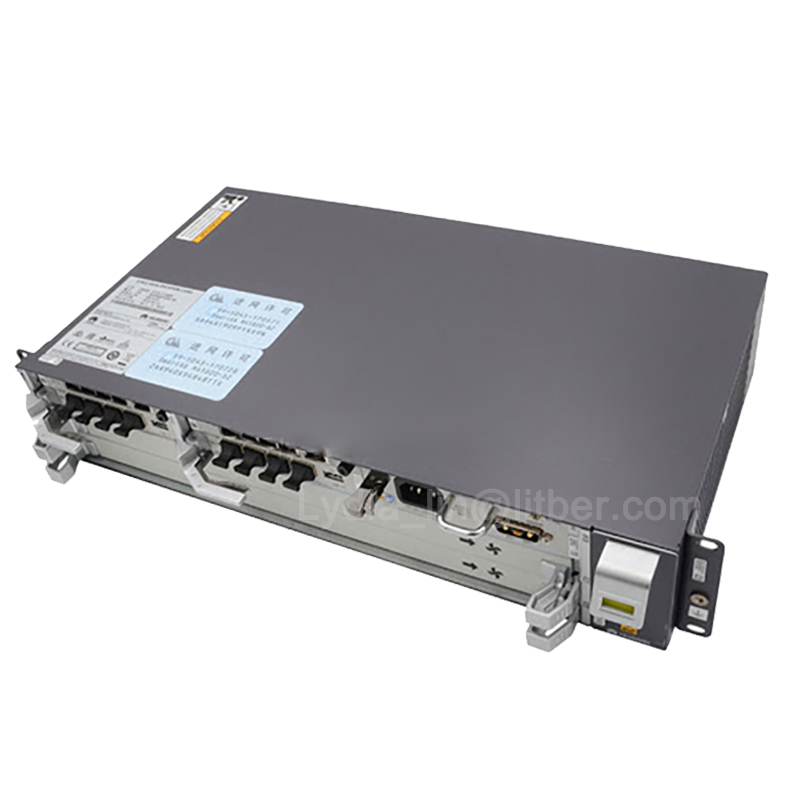

Huawei MA5800-X2 is a high-performance optical line terminal (OLT) device. The following is a detailed introduction:
Hardware Specifications
Dimensions and Weight: The service frame is 2U high and 19 inches wide. The dimensions with IEC mounting ears are 482.6mm×268.7mm×88.1mm, and the full configuration weight is 9.4kg.
Power Supply Parameters: The power supply mode supports DC (dual power backup)/AC + battery backup. The rated voltage of DC power supply is -48V/-60V, the working voltage range is -38.4V～-72V, and the input current of each channel is 20A; the rated voltage of AC power supply is 110V/220V, the working voltage range is 100V～240V, and the input current of each channel is 8A.

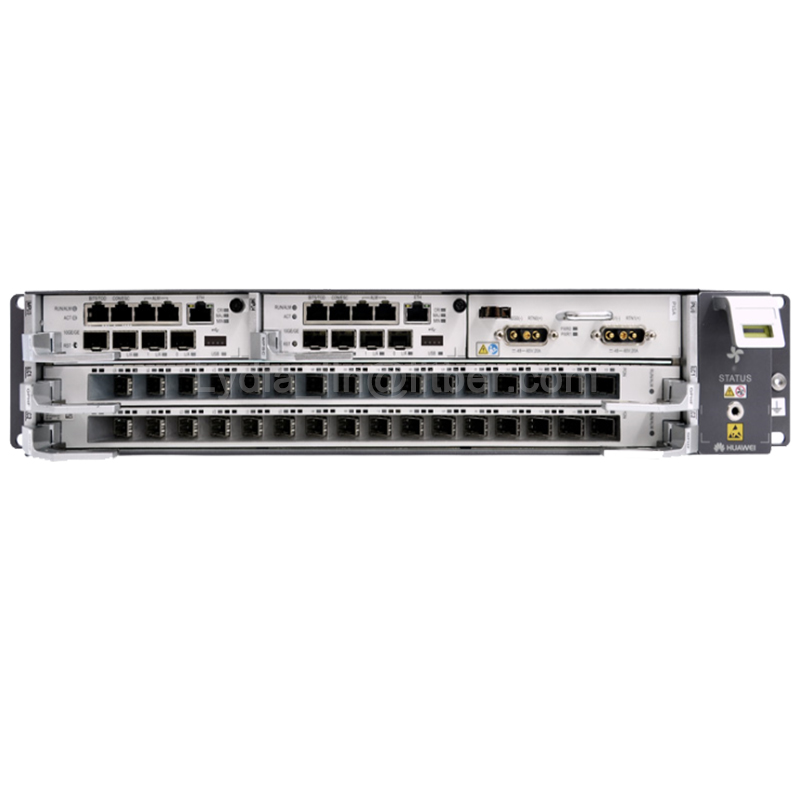

Slot Configuration: 5 slots are provided, including 2 main control board slots, 1 power board slot and 2 service board slots.
Performance Features
Access Capability: Support GPON, EPON, XG-PON, XGS-PON, 10G-EPON and other broadband access technologies can meet various network construction modes such as FTTH, FTTD, FTTB, FTTC, and realize full-service converged access of various services such as home access, enterprise access, mobile bearer and Wi-Fi hotspot backhaul on a single optical fiber network.
Service processing capability: backplane bus switching capacity 1.6Tbit/s, main control board switching capacity 480Gbit/s, each service slot throughput can reach 200G, can support up to 32,768 users, and maximum throughput can reach 80Tbps.
Video service optimization: support distributed caching to achieve faster 4K/8K video startup and channel switching; support VMOS video quality monitoring, the single board realizes the collection of video indicators through built-in probes, and remotely monitors and queries monitoring results through network management to improve video operation and maintenance experience.
Functional characteristics
Intelligent service support: The service board adopts programmable NP architecture, supports SDN-based intelligent services, and can realize the rapid deployment of new services. Supports virtual access network function, which is convenient for multi-service intelligent operation or network wholesale business.
QoS control: It has a complete QoS guarantee mechanism, supports traffic classification, priority processing, traffic supervision based on TRTCM, HQoS, traffic shaping, WRED, PQ/WRR/PQ+WRR, ACL, etc., which can effectively guarantee the bandwidth and service quality requirements of different services.
Multicast function: Supports IGMPv2, IGMPv3, IGMP proxy and snooping, as well as multicast functions such as VLAN-based IPTV multicast, which can achieve efficient video service transmission and provide users with high-quality video experience.
Network management: Supports Huawei iMaster NCE network management system, providing end-to-end network management and automation, allowing network administrators to manage the network more easily.
Reliability design
Redundancy design: Adopts redundant designs such as dual main control and dual power supply. When one main control board or power supply fails, the other can automatically take over the work to ensure uninterrupted operation of the equipment.
Protection mechanism: Supports multiple protection mechanisms, such as GPON type b, type c protection, EPON type b, type d Protection, XG-GPON and 10G EPON type b protection, as well as intra-board and inter-board LAG, MSTP, etc., can effectively ensure the stable operation of the network and prevent single point failures in the network.
