ETP48100
HUAWEI

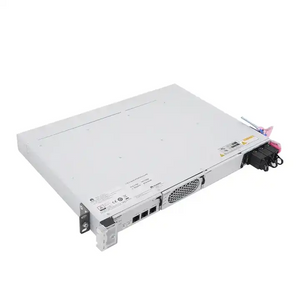

ETP48100 is an embedded power system launched by Huawei.
System composition and configuration

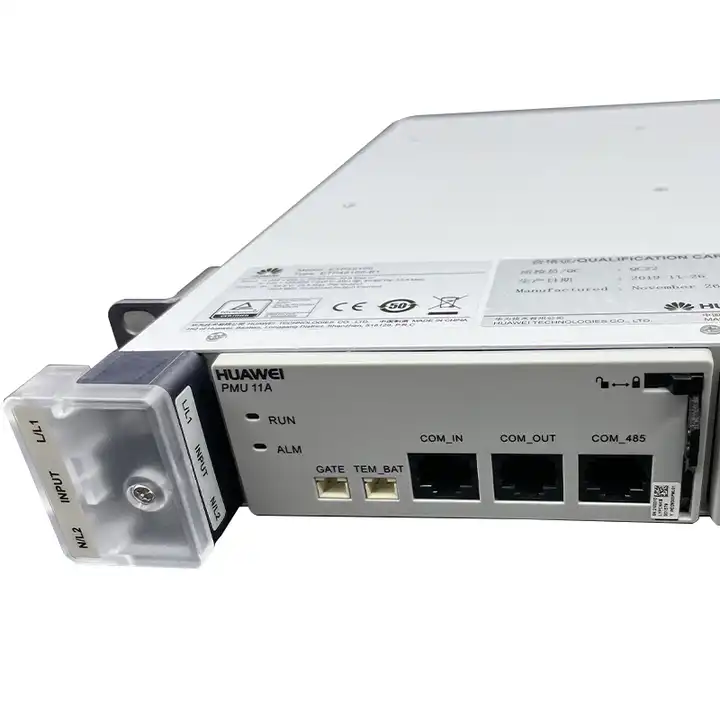

It consists of a system frame, a rectifier module, and a monitoring module. The rectifier module model is R4850G2, and the monitoring module model is PMU10A or PMU11A.
Technical parameters
Input parameters: Input voltage is 100-120V/200-240V, and the input voltage frequency is 45Hz-65Hz.
Output parameters: Output voltage range - 42V DC~-58V DC, ETP48100-A1-50A maximum output power is 3000W, and ETP48100-B1 can reach a maximum output current of 100A when configured with 2 R4850G2 rectifier modules, and the output power is also 3000W.
Performance characteristics
High power efficiency: The efficiency of the rectifier module is as high as 96%, which helps save energy. Output derating above 45℃.
Perfect battery management function: With intelligent battery management, it can effectively extend battery life and improve system reliability.
Hot-swap function: Support hot-swap of rectifier modules and monitoring modules, which is convenient for system maintenance and upgrade and reduces equipment downtime.
Wide range AC input voltage: It can adapt to a wider input voltage range, such as 260V AC~530V AC, which enhances the adaptability and stability of the system.
Multiple protection functions: With 2kV differential mode surge protection capability and 4kV common mode surge protection capability, it can effectively prevent damage to equipment caused by overvoltage such as lightning strikes.
Support multiple function expansion: The sensor adapter box can be connected through the DB50 interface to expand the user interface; support electronic label function to facilitate asset management and fault location.
Application scenarios
Communication base station: Provide stable DC power supply for BBU, RRU and other equipment in the base station to ensure the normal operation of the communication network.
OLT equipment power supply: It can be used as Huawei MA5680T, MA5683T and ZTE C220, C300, C320 The power supply of OLT equipment such as 1000A and 1000A can meet its high requirements for power supply.
Other communication equipment: It is also suitable for power supply of switches, routers and other equipment in various communication rooms, providing reliable power guarantee for the stable operation of communication systems.
