MA5800-X7
huawei
Huawei MA5800-X7 is a high-performance optical line terminal (OLT) device. The following is a detailed introduction:
Product Overview
Huawei MA5800-X7 is the industry's first distributed architecture intelligent convergence OLT platform, positioned as the next-generation OLT for NG-PON, dedicated to helping customers build a "wider, faster, smarter" access network, thereby providing users with a better service experience.
Hardware Performance

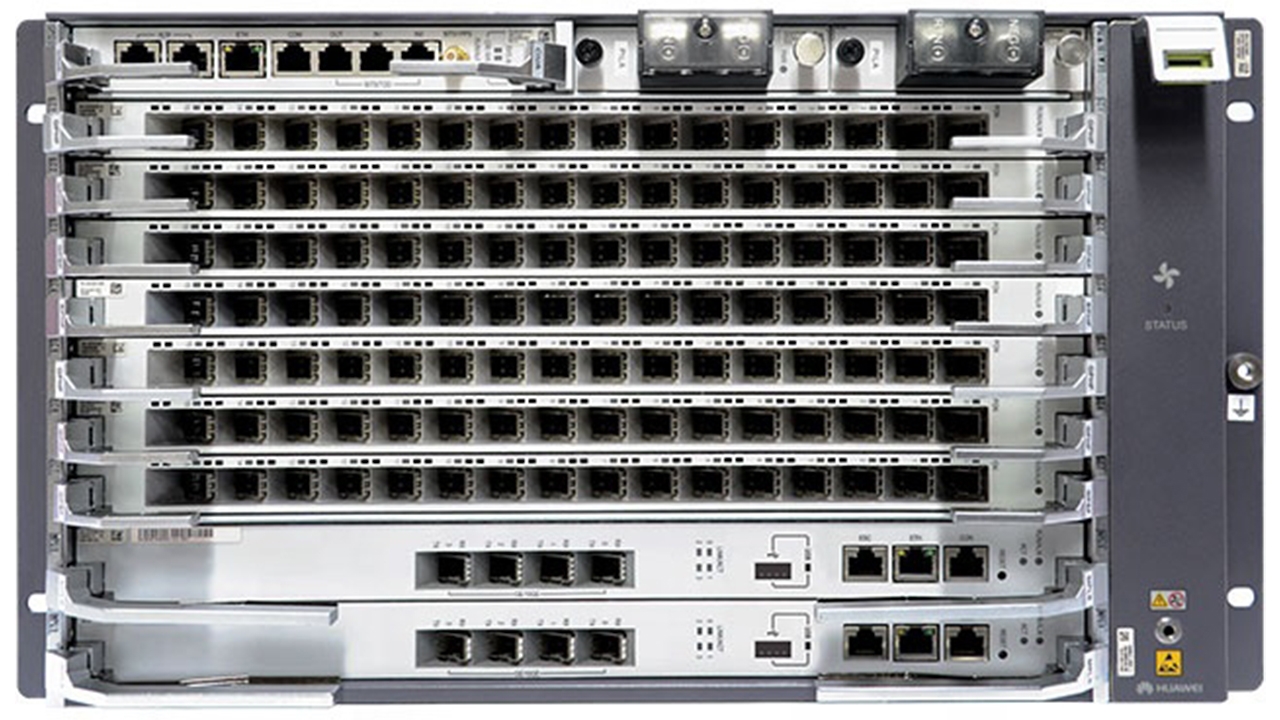

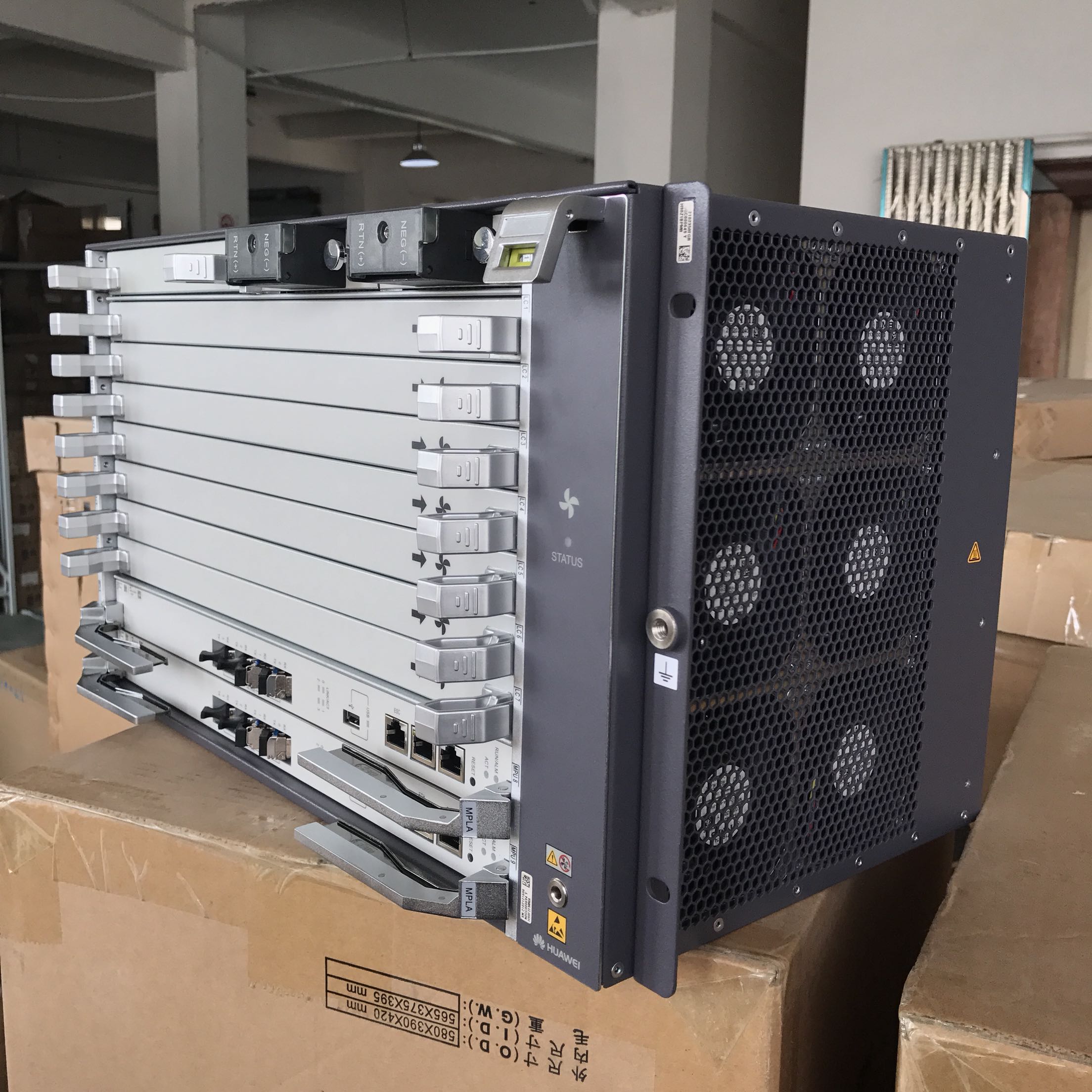

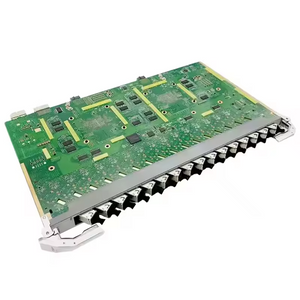

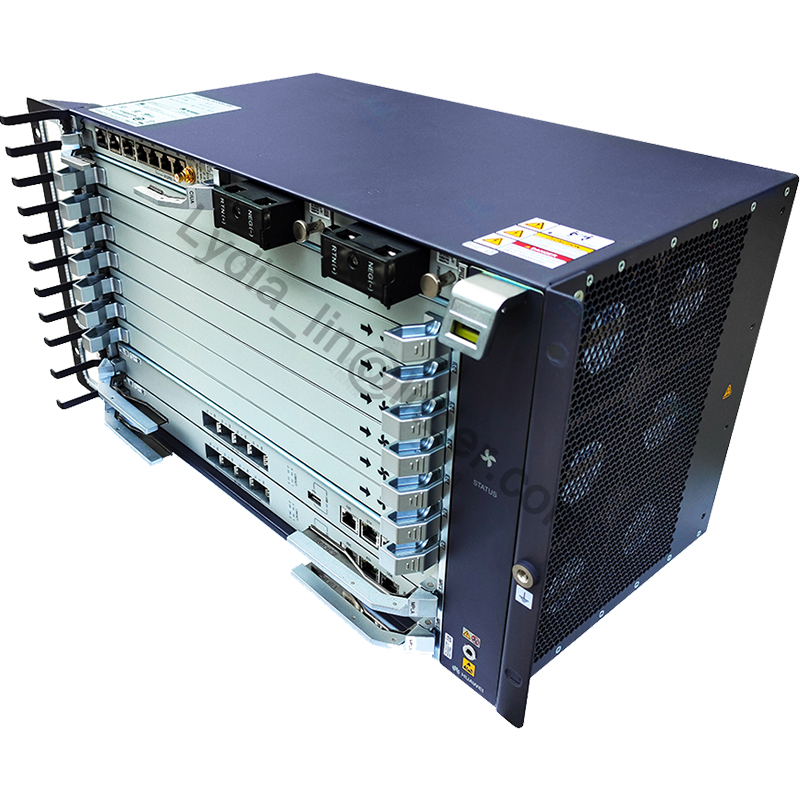

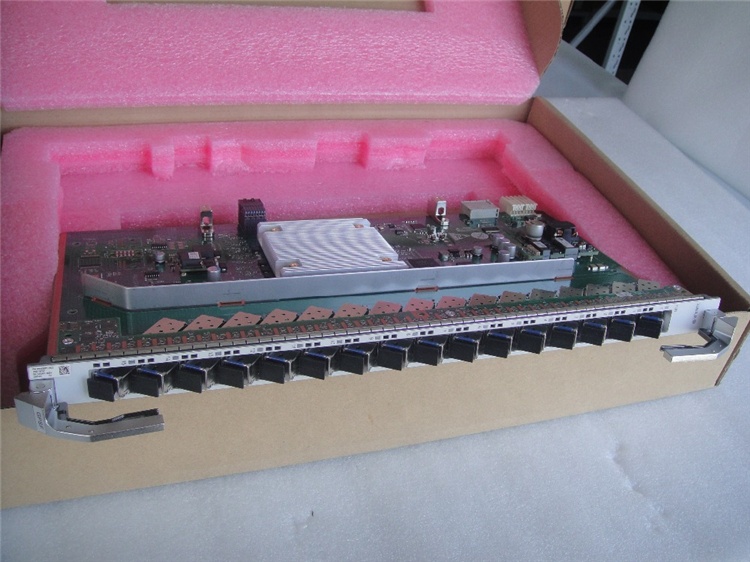

Port Configuration: The device is equipped with 7 service slots, each with a throughput of up to 200G, which can support multiple access methods such as GPON and 10G PON, and can smoothly evolve to 40G/100G PON. In addition, the main control board is embedded with 4*GE/10GE uplink ports, and supports 16-port GPON interface cards and 8-port 10G PON interface cards.
Capacity support: supports up to 262,143 MAC addresses and 65,536 ARP entries, which is more than 8 times the number of MAC addresses and ARP entries supported by MA5680T, which enables the device to better meet the access needs of a large number of users and provides greater convenience for business configuration and expansion.
Power supply specifications: It adopts a DC dual-power backup power supply mode, with a rated voltage of -48V or -60V, an operating voltage range of -38.4V to -72V, and an input current of 40A per channel.
Technical features
Multiple access methods: supports GPON, 10G GPON (XG-PON and XGS-PON), EPON, 10G EPON, P2P GE and 10GE It can meet the needs of different user scenarios with a variety of access technologies, such as FTTH, FTTD, FTTB, FTTC, and D-CCAP, etc., to achieve full-service convergence access of various services such as home access, enterprise access, mobile bearer, and Wi-Fi hotspot backhaul on a single optical fiber network.
Intelligent service support: The service board adopts a programmable NP architecture, supports SDN-based intelligent services, and can achieve rapid deployment of new services. In addition, the device also supports virtual access network functions, which can be used to carry out multi-service intelligent operations or network wholesale services, thereby providing users with a better service experience.
High reliability design: The system has good reliability, supports the upgrade of the main control and service boards, and supports a variety of protection mechanisms, such as GPON type b, type c protection, EPON type b, type d protection, XG-GPON and 10G EPON type b protection, as well as intra-board and inter-board LAG, MSTP, etc., which can effectively ensure the stable operation of the network.
Powerful Layer 2 and Layer 3 features: Supports Layer 2 features such as VLAN+MAC forwarding, SVLAN+CVLAN forwarding, PPPoE+, DHCP Option82, as well as static routing, RIP, OSFP/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, VRF, MPLS&PWE3 LDP, RSVP-TE, MPLS OAM, Tunnel protection switching, TDM/Eth PWE3, PW protection switching, MPLS BGP IP VPN, IPv6 IPv4 and IPv6 dual stack, IPv6 Layer 2 and Layer 3 forwarding, DHCPv6 relay and other Layer 3 features can meet the complex business needs of different users.
Multicast function optimization: Supports IGMPv2, IGMPv3, IGMP proxy and snooping, as well as VLAN-based IPTV multicast and other multicast functions, which can achieve efficient video service transmission and provide users with high-quality video experience.
QoS guarantee mechanism: It has a complete QoS guarantee mechanism, which can realize traffic classification, priority processing, TRTCM-based traffic supervision, HQoS, traffic shaping, WRED, PQ/WRR/PQ+WRR, ACL and other functions, which can effectively guarantee the bandwidth and service quality requirements of different services.
Physical parameters
The size of the device without mounting ears is 442.0mm×268.7mm×263.9mm, the size with IEC specification mounting ears is 482.6mm×268.7mm×263.9mm, and the size with ETSI specification mounting ears is 482.6mm×268.7mm×263.9mm. Specifications The size of the mounting ear is 535.0mm×268.7mm×263.9mm, and the full weight (with mounting ear) is 26kg.
Working environment
The normal operating temperature range is - 40℃ to + 65℃, the minimum startup temperature is - 25℃, and the working humidity range is 5%-95%, which can adapt to a variety of different working environments.
