hg8546m
huawei
HG8546M GPON is a Gigabit Passive Optical Network Terminal Device launched by Huawei. The following is a detailed introduction:

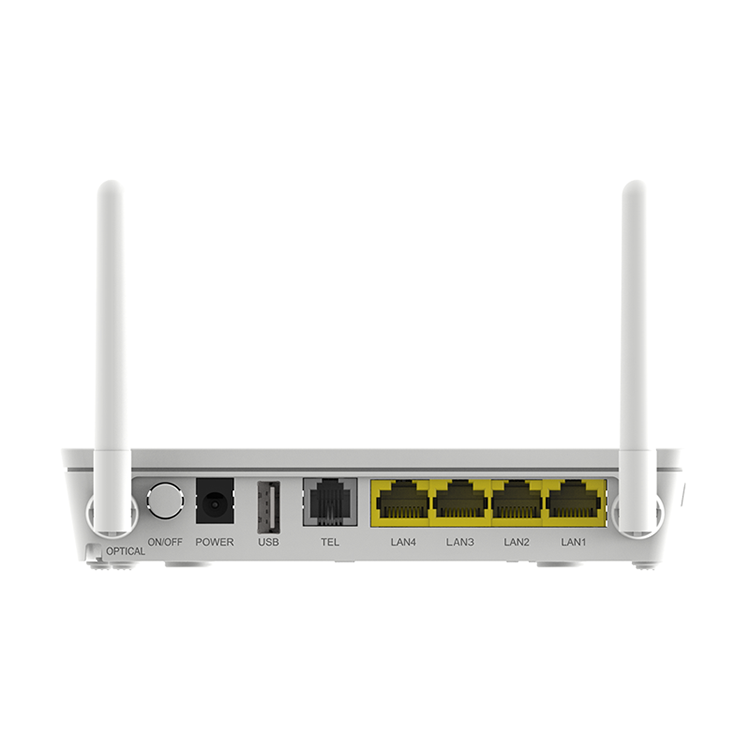

Hardware Interface
GPON Interface: Used to connect to the operator's OLT equipment, realize high-speed data transmission through optical fiber, and is the key interface for accessing the network.
Ethernet Interface: Generally equipped with multiple Ethernet interfaces, including 1 Gigabit Ethernet interface and multiple 100M Ethernet interfaces, which can be connected to computers, IPTV set-top boxes and other devices through network cables to meet the wired network access needs of users' various devices.
Voice Interface: With RJ-11 voice interface, it can be connected to ordinary telephones, supports VoIP technology, and realizes voice call function.
USB Interface: Equipped with 1 USB 2.0 interface, it can connect external storage devices such as U disk, mobile hard disk, etc., so that users can share files between devices in the network.
Wi-Fi Antenna: Built-in Wi-Fi module, supports IEEE 802.11b/g/n and other standards, and some models also support 2.4G/5G Dual-band, can provide stable wireless signal coverage, meet users' wireless Internet access needs.
Main functions
Network access function: adopts GPON technology, the downlink rate can reach up to 2.5Gbps, the uplink rate can reach up to 1.25Gbps, can provide high-speed broadband access for home and small business users, support multiple network protocols, such as DHCP, NAT, PPPoE, IPv6, etc., can meet users' different network access needs.
Voice call function: support VoIP technology, can convert voice signals into digital signals for transmission on the network, realize voice call function, and support multiple voice coding formats, such as G.711A/u, G.722, G.729a/b, etc., can provide clear voice call quality, also support T.30/T.38/G.711 fax and emergency call functions.
Wi-Fi function: provide wireless access point function, can provide Wi-Fi connection for smart devices, support 2.4GHz and 5GHz dual-band devices, can provide up to 1167Mbps The maximum transmission rate of Wi-Fi 400 series is 100%, and it supports WMM (Wi-Fi Multi Media), multiple SSID, WPS and other functions, which can provide better wireless performance and user experience.
Network management function: Users can manage and configure the device through the Web management interface or mobile phone APP, such as setting Wi-Fi name and password, configuring network parameters, and performing user access control. It also supports remote management functions, which is convenient for operators to maintain and manage the device.
Security protection function: Built-in firewall function can prevent unauthorized network access and attacks, protect users' network security, support ACL and SNMP and other functions, and can flexibly configure packet filtering. It also supports VLAN division and user isolation functions, which can effectively avoid broadcast storms and improve network security.
Application scenario
Home network: It can be used as the core device of the home network to provide home users with high-speed broadband access, voice calls, wireless Internet access and other functions to meet the network needs of family members.
Small business network: It is suitable for the office network of small enterprises, which can provide stable and reliable network access for enterprise users, support wired and wireless connections of multiple devices, and meet the network needs of daily office work of enterprises.
FTTH solution: It is an important part of the fiber-to-the-home solution and can be used with the operator's OLT The equipment is used together to provide users with ultra-broadband access services and promote the popularization and application of fiber-to-the-home.
