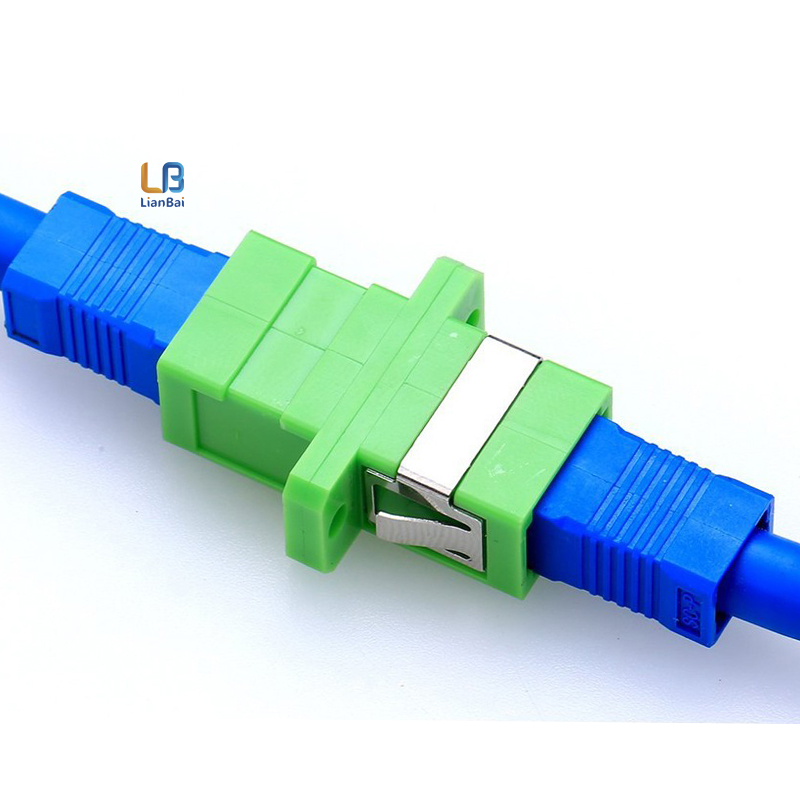

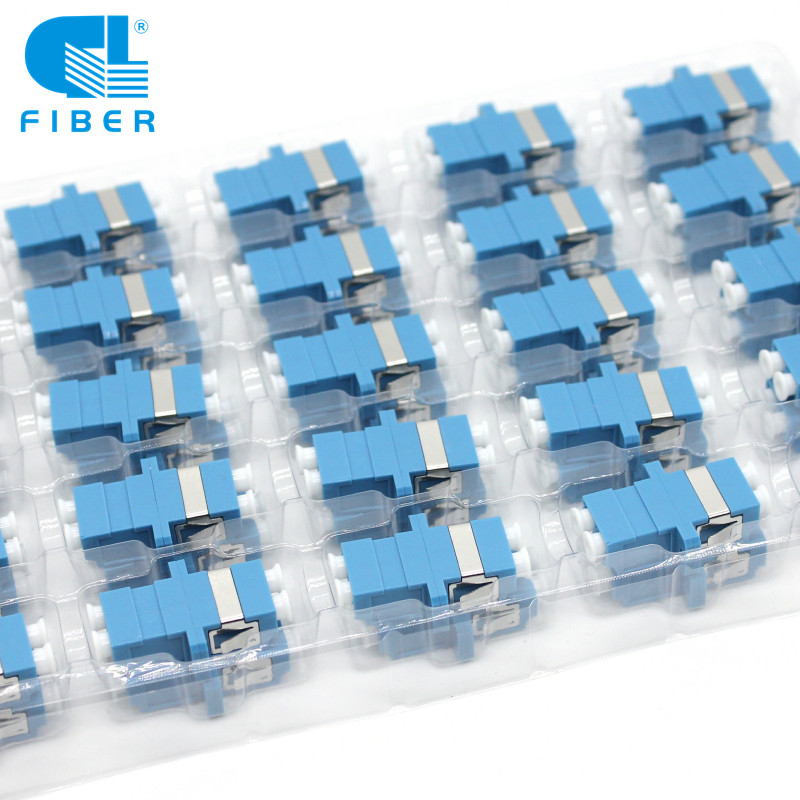

Fiber Optical Adapter

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product performance description

Angnet provide 1xN (1x2, 1x4, 1x8, 1x16, 1x32, 1x64) and 2xN (2x2, 2x4, 2x8, 2x16, 2x32, 2x64) split ratio fiber optic splitter.

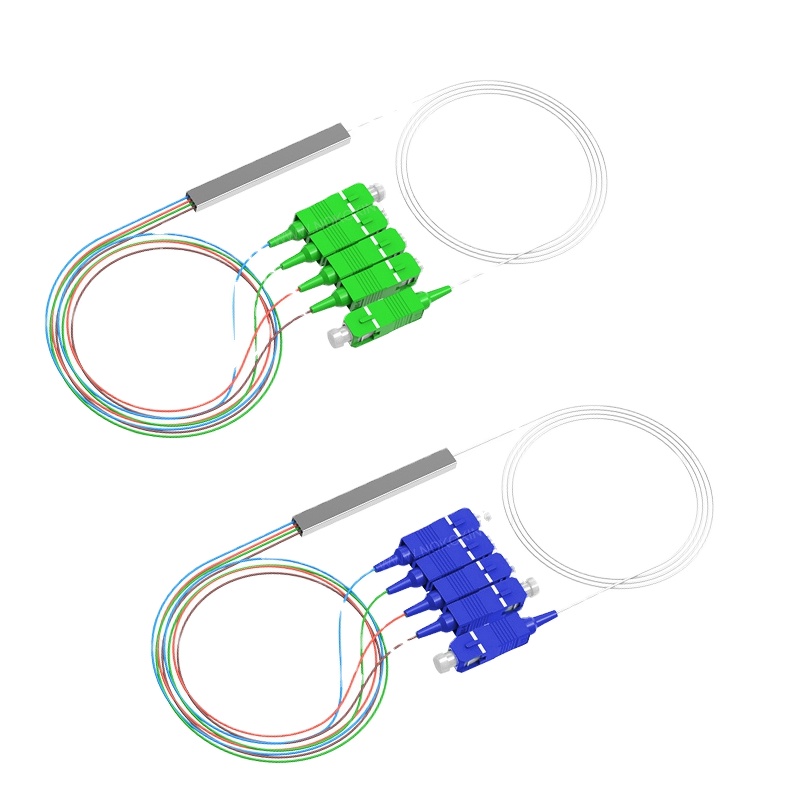

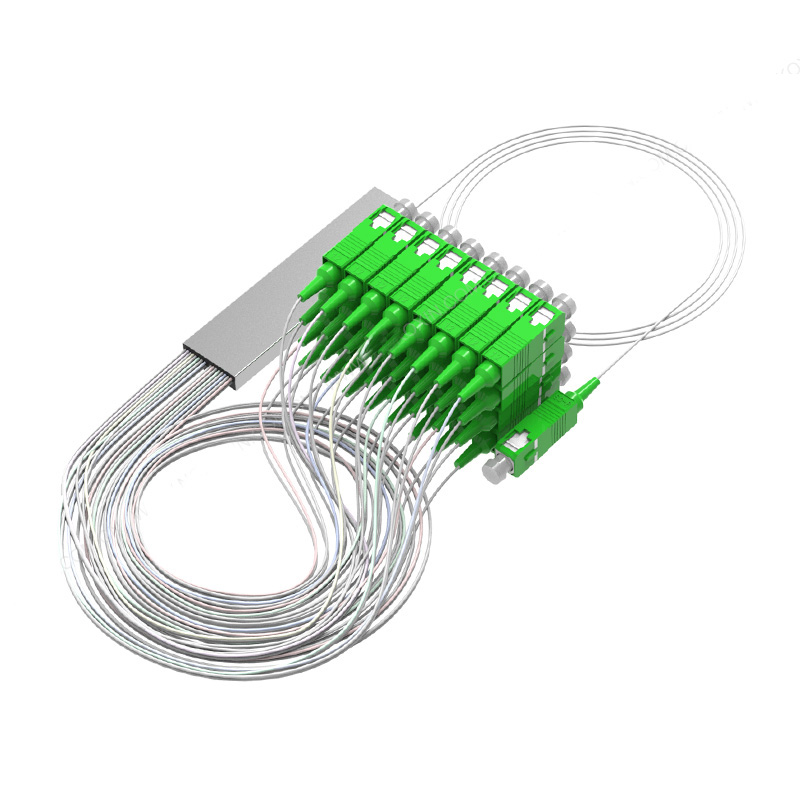

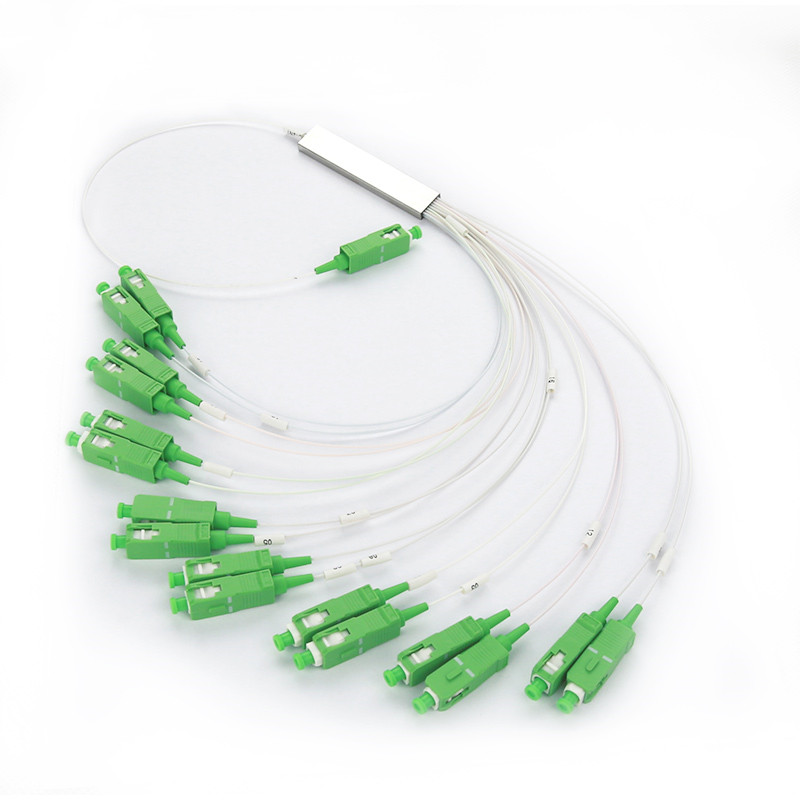

All of our PLC splitter can be customized, the most common of package have mini steel tube package, ABS box package and Cassette
box package, the mini steel tube package PLC splitter input and output pigtail diameter is 0.9mm, default pigtail length is

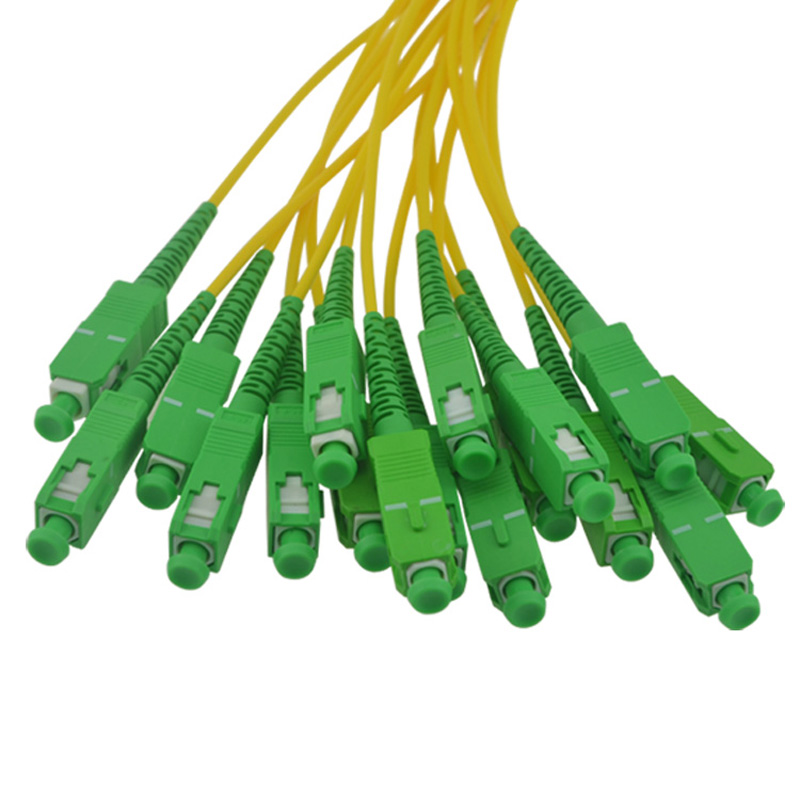

1meter, the pigtail length also can be customized according customer's request. The most common connector is SC connector (SC/APC

or SC/UPC).

Port Configration	1X2	1X4	1X8	1X16	1X32	1X64
Operating Wavelength (nm)	1260 ~ 1650
Insertion Loss (dB)	Typical:3.5	6.8	10.2	13.1	16.2	20.2
Insertion Loss (dB)	Max:4	7.4	10.5	13.5	16.9	21
Channel Uniformity (dB)	0.5	0.7	1	1.4	1.8	2
PDL (dB)	0.2	0.2	0.3	0.3	0.3	0.4
WDL (dB)	0.3	0.3	0.3	0.5	0.5	0.8
TDL (-40ºC ~ 85ºC )(dB)	0.5	0.5	0.5	0.8	0.8	1
Dimensions for Fan-out (mm)	60(L)X7(W)X4(H)			60X12X4	80(L)X20(W)X6(H)
RL (dB)	> 55dB
Directivity (dB)	> 55dB
Fiber Type	G652D
Operating Temperature Range	-40ºC ~ 85ºC
