EG8145X6
HUAWEI

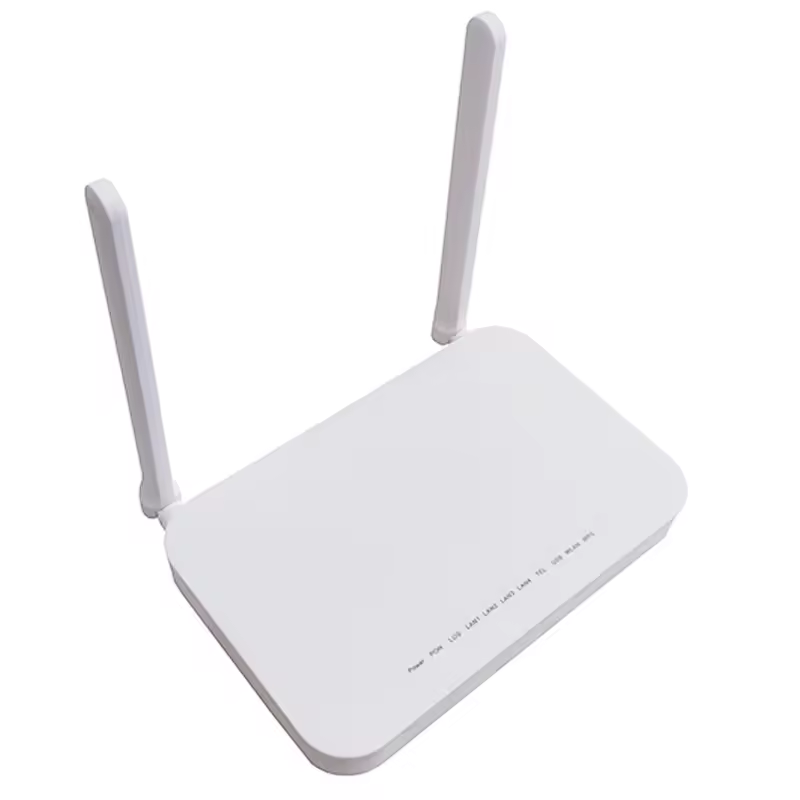

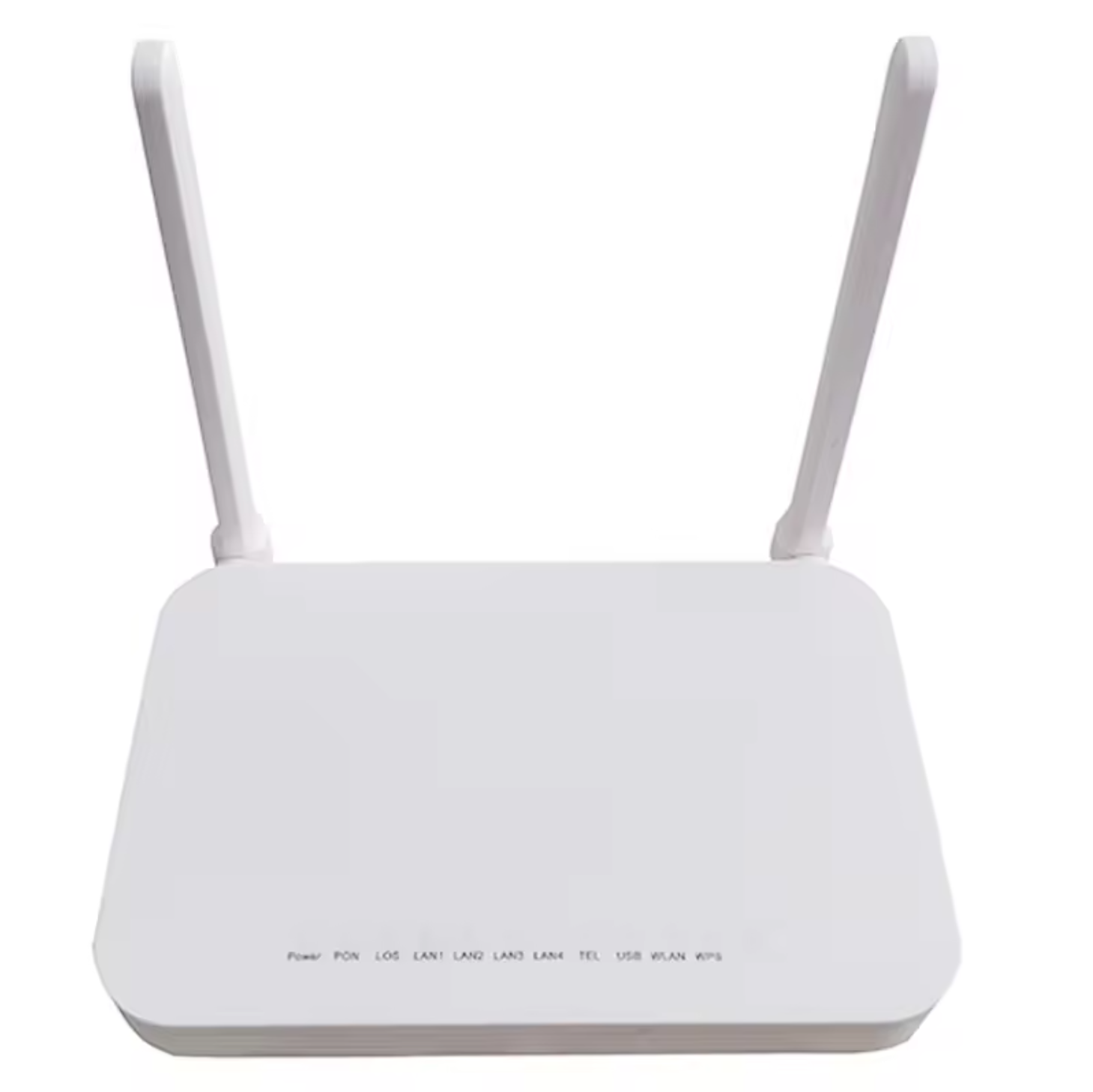

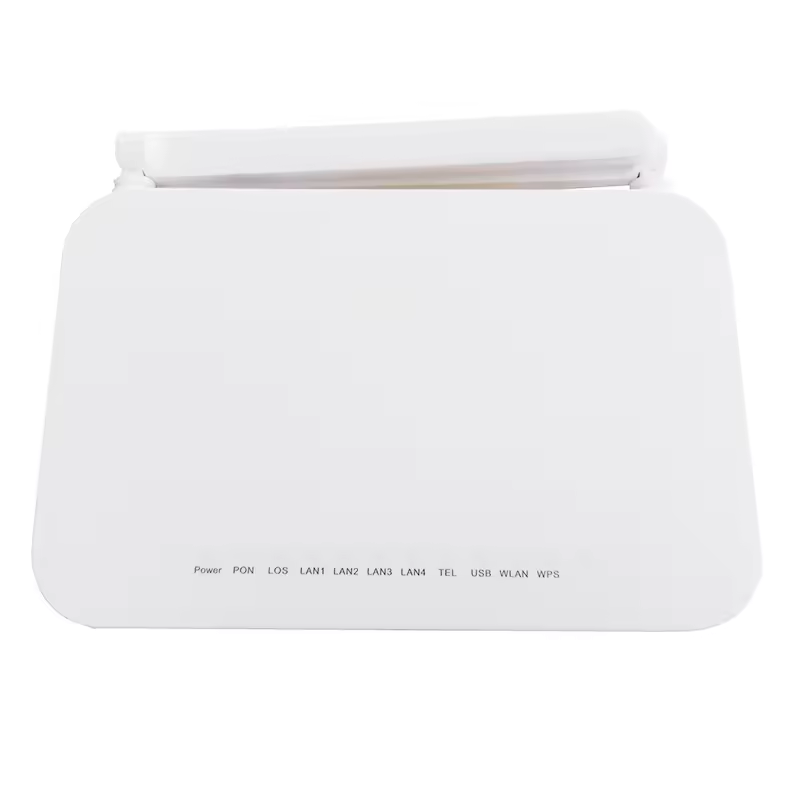

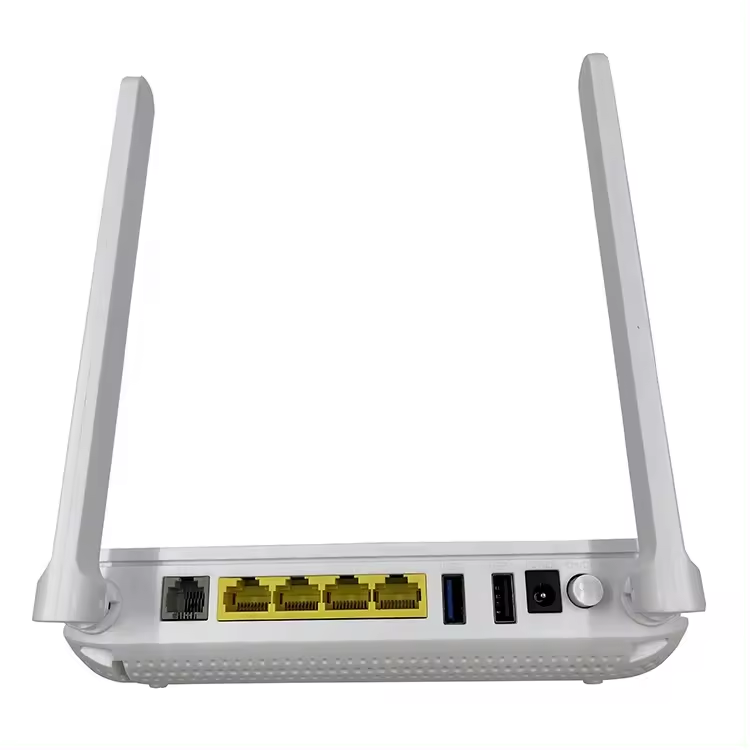

Huawei OptiXstar EG8145X6 is an intelligent Wi-Fi 6 routing optical network terminal
Ports and network connections
GE port: The device is equipped with 4 GE ports, which can provide high-speed and stable wired network connection to meet the needs of multiple devices accessing at the same time. It is suitable for connecting computers, smart TVs, game consoles and other network devices.
POTS port: 1 POTS port can be used to connect traditional fixed-line telephone equipment, which is convenient for users to continue to use the original fixed-line telephone service while using the network.
USB port: 1 USB 2.0 port can provide users with additional expansion functions, such as connecting external storage devices to achieve network shared storage, etc.
Wi-Fi 6: Supports 2.4G and 5G dual-band Wi-Fi 6 technology, providing faster wireless transmission speeds and more stable network connections. Among them, the antenna gain of the 2.4G band is 5dBi, the air interface rate of the 5G band can reach 2402Mbit/s, and the air interface rate of the 2.4G band can reach 574Mbit/s, which can meet the wireless connection needs of multiple devices in home and office environments.
Performance characteristics
High forwarding performance: It has powerful forwarding performance to ensure smooth experience of services such as voice, data and high-definition video, provide users with high-quality network services, and meet the needs of families and enterprises for multiple services.
Intelligent service: It supports the timed shutdown of Wi-Fi function. Users can set the timed shutdown time according to their own needs to save energy and reduce unnecessary radiation. In addition, it also supports the intelligent Wi-Fi sharing function, which can facilitate users to manage and share network resources through Portal/802.1x authentication or sharing based on Soft GRE.
Intelligent operation and maintenance: It provides IPTV video quality diagnosis, EMDI and other functions to facilitate operators to monitor and manage the network. At the same time, it also has functions such as illegal ONT detection and isolation, call simulation, circuit test and loopback test to ensure the safe and stable operation of the network.
Specifications
Dimensions: 195mm long, 125mm wide, 35mm high, small size, easy to install and place.
Weight: about 372g, light weight, can be easily installed on the wall or desktop.
Power adapter input: supports 100-240V AC, 50/60Hz AC input, can adapt to the voltage standards of different regions, convenient for users to use in different environments.
System power supply: 11-14V DC, 1.5A DC output, providing stable power support for the device.
Power consumption: static power consumption 6W, maximum power consumption 18W, low energy consumption, in line with energy saving and environmental protection requirements.
Working temperature: the working temperature range is 0℃-40℃, and it can work stably at normal indoor ambient temperature.
Working humidity: the working humidity range is 5%-95% RH (non-condensing), can adapt to environmental conditions with different humidity.
Application scenarios
Home network: suitable for home users to build a high-speed and stable wireless network environment to meet the various network needs of family members, such as online video, games, smart home device control, etc.
Small office: can provide reliable network access and sharing services for small offices, support simultaneous connection of multiple computers and network devices, and improve office efficiency.
Enterprise branch: For enterprise branches or small stores, Huawei OptiXstar EG8145X6 can be used as a cost-effective network access device to provide stable network connection to meet the needs of daily office and business operations.
